Support Widget

Your customers shouldn't have to leave your app to get help. The support widget embeds your documentation, AI-powered answers, and live chat directly into your product—giving customers instant answers right where they need them.

What customers see

The widget appears as a floating button in the corner of your app. When customers click it, they see a home screen with quick actions and your help documentation.

Widget features

Live chat

When chat is enabled and your team is online, customers can start real-time conversations. Messages appear in your helpdesk inbox as tickets, and your replies post back to the widget instantly.

Chat automatically adapts to your team's availability:

• Online (within business hours) — Shows live chat option with real-time messaging

• Offline (outside hours) — Falls back to email form so customers can still reach you

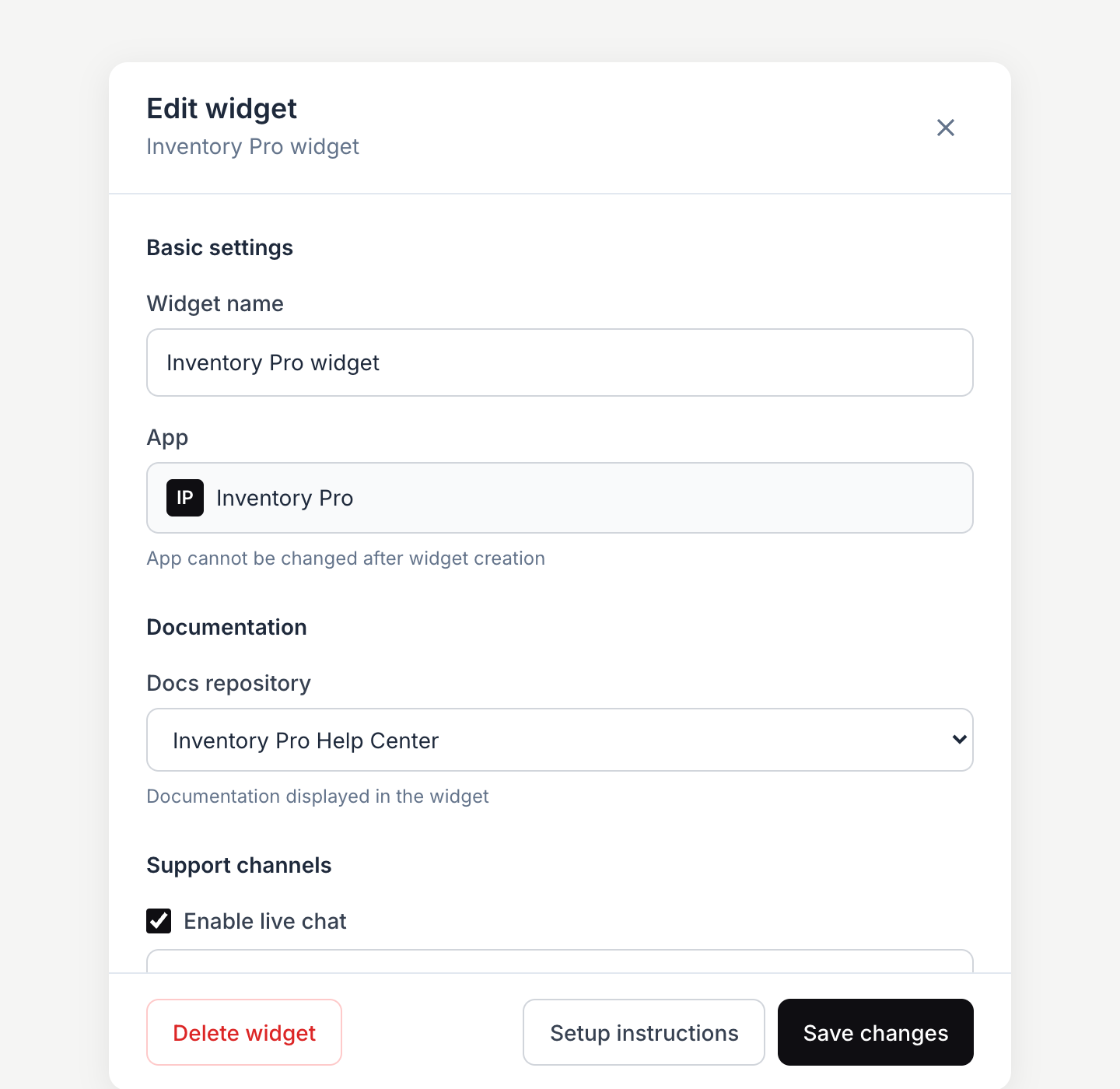

Creating a widget

To create your first support widget:

1. Go to Helpdesk in the main navigation

2. Click Settings in the sidebar

3. Scroll to the Widgets section

4. Click Create widget

5. Select which app this widget is for

6. Configure your support channels and documentation

Configuration options

Authentication options

Authentication lets customers sign in for a personalized experience with conversation history preserved across sessions.

Installing the widget

After creating your widget, click Setup instructions to get the installation code. Add the script tag to your app's HTML.

Basic installation (unauthenticated)

For a simple setup where you don't need to identify users:

<script
  async
  src="https://cdn.heymantle.com/mantle-help-desk-widget.js"
  data-widget-id="your-widget-id"
></script>

This is ideal for public websites where you don't know who the user is. Customers can still use documentation, start chats, and send messages—they'll just need to provide their contact information.

Automatic authentication with apptrack (Shopify apps)

If you already have the Mantle apptrack script on the same page with contact capture configured, the widget will automatically authenticate your Shopify users—no additional setup needed.

The apptrack script detects the widget on the page and securely logs the user in via JWT. The customer's name, email, and customer ID are included automatically, so any tickets or chats they create are fully authenticated and linked to their customer record and contact in Mantle.

<!-- Both scripts on the same page — authentication is automatic -->
<script src="https://cdn.heymantle.com/apptrack.js" data-app-id="your-app-id"></script>
<script
  async
  src="https://cdn.heymantle.com/mantle-help-desk-widget.js"
  data-widget-id="your-widget-id"
></script>

With JWT authentication (manual)

If you're not using apptrack, or need more control over authentication, you can generate a JWT token on your server and pass it to the widget. This automatically identifies customers without requiring them to sign in.

Step 1: Generate a JWT on your backend using your widget's secret:

const jwt = require('jsonwebtoken');

const token = jwt.sign(
  {
    widgetId: 'your-widget-id',
    email: '[email protected]',
    name: 'Customer Name',              // optional
    myshopifyDomain: 'store.myshopify.com',  // optional, for Shopify apps
    exp: Math.floor(Date.now() / 1000) + 3600  // 1 hour expiry
  },
  process.env.WIDGET_JWT_SECRET
);

Step 2: Include the token in the script tag:

<script
  async
  src="https://cdn.heymantle.com/mantle-help-desk-widget.js"
  data-widget-id="your-widget-id"
  data-jwt="your-generated-jwt-token"
></script>

Script attributes

JWT authentication details

JWT (JSON Web Token) authentication lets you securely identify customers from your backend. When you pass a valid JWT, the customer is automatically signed in with their information pre-filled.

JWT payload fields

Security tip: Always generate JWT tokens on your server, never in client-side code. Keep your JWT secret secure and regenerate it immediately if compromised.

Regenerating your JWT secret

If you need to regenerate your JWT secret (for example, if it was accidentally exposed):

1. Open your widget's setup instructions

2. Click Regenerate secret

3. Update your backend code with the new secret

JavaScript API reference

Control the widget programmatically from your application code. This is useful for opening the widget from custom help buttons, responding to user actions, or integrating with your app's UI.

init(options)

Initializes the widget with the provided configuration. Must be called before using other methods (unless using auto-initialization via data attributes).

window.MantleHelpDeskWidget.init({
  widgetId: 'your-widget-id',
  theme: 'light',
  position: 'bottom-left',
  widgetTitle: 'Need help?',
  showDocs: true,
  showLogin: true,
  debug: true
});

If the widget is already initialized, calling init() again will destroy the existing instance and create a new one.

show()

Opens and displays the widget.

// Show widget when user clicks a custom button
document.getElementById('help-button').addEventListener('click', () => {
  window.MantleHelpDeskWidget.show();
});

hide()

Closes and hides the widget.

window.MantleHelpDeskWidget.hide();

toggle()

Toggles the widget visibility (opens if closed, closes if open).

// Toggle widget with keyboard shortcut
document.addEventListener('keydown', (e) => {
  if (e.ctrlKey && e.key === 'h') {
    e.preventDefault();
    window.MantleHelpDeskWidget.toggle();
  }
});

openDocsPage({ handle })

Opens a specific documentation page inside the widget.

window.MantleHelpDeskWidget.openDocsPage({ handle: 'getting-started' });

getState()

Returns the current widget state object.

const state = window.MantleHelpDeskWidget.getState();
console.log('Visible:', state.isVisible);
console.log('Unread messages:', state.unreadCount);

Available state fields:

setTheme(theme)

Updates the launcher button theme dynamically. Accepts light or dark.

// Match widget theme to system preference
const prefersDark = window.matchMedia('(prefers-color-scheme: dark)').matches;
window.MantleHelpDeskWidget.setTheme(prefersDark ? 'dark' : 'light');

// Listen for theme changes
window.matchMedia('(prefers-color-scheme: dark)').addEventListener('change', (e) => {
  window.MantleHelpDeskWidget.setTheme(e.matches ? 'dark' : 'light');
});

setPosition(position)

Updates the widget position dynamically. Accepts bottom-right, bottom-left, top-right, or top-left.

window.MantleHelpDeskWidget.setPosition('bottom-left');

setJwt(token)

Updates the JWT token dynamically. Useful for single-page apps where the user logs in after the widget loads.

// After user authenticates in your app
async function onUserLogin(user) {
  const jwt = await fetchJwtFromServer(user.id);
  window.MantleHelpDeskWidget.setJwt(jwt);
}

destroy()

Completely removes the widget from the page, cleans up event listeners, and resets all state. You must call init() again to reinitialize after destroying.

window.MantleHelpDeskWidget.destroy();

Events

The widget emits custom DOM events that you can listen to for integration with your application.

mantleUserLogout

Fired when a user logs out of the widget.

document.addEventListener('mantleUserLogout', () => {
  console.log('User logged out of widget');
  // Clear user session, track analytics, etc.
});

State management

The widget automatically persists state across page reloads using localStorage:

• Open/closed state — restored on page load

• Expanded/collapsed size — restored on page load

• Widget session ID — for anonymous sessions

State is keyed by widgetId, so multiple widgets on the same domain maintain separate state.

Widget sizing

• Desktop: 400px wide (collapsed), 700px wide (expanded), 600px height

• Mobile (< 440px): Full screen, edge-to-edge

Framework examples

React

import { useEffect, useRef } from 'react';

function App() {
  const widgetInitialized = useRef(false);

  useEffect(() => {
    const script = document.createElement('script');
    script.src = 'https://cdn.heymantle.com/mantle-help-desk-widget.js';
    script.async = true;

    script.onload = () => {
      window.MantleHelpDeskWidget.init({
        widgetId: 'your-widget-id',
        theme: 'dark',
        position: 'bottom-right'
      });
      widgetInitialized.current = true;
    };

    document.head.appendChild(script);

    return () => {
      if (widgetInitialized.current) {
        window.MantleHelpDeskWidget.destroy();
      }
    };
  }, []);

  return (
    <button onClick={() => window.MantleHelpDeskWidget.show()}>
      Open Help
    </button>
  );
}

Vue.js

<template>
  <button @click="showWidget">Open Help</button>
</template>

<script>
export default {
  mounted() {
    const script = document.createElement('script');
    script.src = 'https://cdn.heymantle.com/mantle-help-desk-widget.js';
    script.async = true;

    script.onload = () => {
      window.MantleHelpDeskWidget.init({
        widgetId: 'your-widget-id',
        theme: 'dark'
      });
    };

    document.head.appendChild(script);
  },
  beforeUnmount() {
    if (window.MantleHelpDeskWidget) {
      window.MantleHelpDeskWidget.destroy();
    }
  },
  methods: {
    showWidget() {
      window.MantleHelpDeskWidget?.show();
    }
  }
};
</script>

Best practices

• Use JWT authentication — Pre-authenticated customers get the best experience with zero friction and full conversation history

• Always enable documentation — Even without chat, docs help customers self-serve and reduce support volume

• Configure email fallback — Always give customers a way to reach you when chat is offline

• Keep tokens short-lived — Use 1-hour expiration for JWTs and refresh them as needed

• Test the mobile experience — The widget adapts to mobile screens, but verify it works well with your app's UI

• Match your brand — Use the theme option that best fits your app's design

Troubleshooting

Widget doesn't appear

• Check that the script tag is properly included before </body>

• Verify the data-widget-id matches your widget's ID exactly

• Check the browser console for errors (enable data-debug="true")

• Ensure the widget is enabled in your Mantle settings

JWT authentication not working

• Verify the JWT is signed with the correct secret

• Check that widgetId in the JWT payload matches data-widget-id

• Ensure the token hasn't expired (check the exp field)

• Confirm you're using the correct algorithm (HS256)

Chat shows as offline

• Check that the chat channel is enabled in widget settings

• Verify your team's availability hours in helpdesk settings

• Ensure at least one agent is set to "available" during business hours

State not persisting

• Check that localStorage is enabled in the browser

• Verify no browser extensions are blocking localStorage

• Ensure same domain/origin (localStorage is origin-specific)

Methods not available

If window.MantleHelpDeskWidget is undefined:

• Ensure the script has loaded (check the Network tab in dev tools)

• Wait for the script to load using a script.onload callback

• Check for JavaScript errors preventing script execution

Browser support

The widget supports all modern browsers: Chrome, Firefox, Safari, and Edge (latest versions). Requires JavaScript enabled, localStorage support, and the postMessage API.
